 T2W3 ALTERNATOR

GENERAL FEATURES:

T2W3-N Series Brushless Synchronous Alternator are two structures, it is double bearings (IMB3), single bearing (IMB15) with feet horizontal mount, protection degree is IP21. Cooling method is self-cool by fan. Insulation class is class F or H. The frame is made of cast iron, the shape is octagonal or round, the armature windings is Y connection with neutral point draw forth wire.

The rotor iron core is made of round salient lamination of cold-press steel plate which is then wound on itself. Class F insulation glue was topped between the layers, and the poles are fixed with bracket blocks that make the rotor be possessed of sturdy, reliable and with good heat radiation performance. The entire rotor is equipped with damping windings. All parts of rotor mechanical strength is designed under condition of 1.2 times of rated speed.

 TECHNICAL DATA for T2W3 :

Type

Frame No

Rated Output(kVA)

Rated Power(kW)

Rated Current(A)

Rated Speed(r/min)

Efficiency(%)

Weight(kg)

T2W3-N – 20

200S

25

20

36

1500

81

218

T2W3-N – 24

30

24

43.3

1500

84.0

235

T2W3-N – 30

37.5

30

54.1

1500

86.0

263

T2W3-N – 40

225M

50

40

72.2

1500

89

380

T2W3-N – 50

62.5

50

90.2

1500

90.0

420

T2W3-N – 64

225L

80

64

115

1500

90.2

460

T2W3-N – 75

93.8

75

135

1500

90.3

500

T2W3-N – 90

250S

112.5

90

162

1500

90.5

560

T2W3-N – 100

250L

125

100

180

1500

91.0

610

T2W3-N – 120

150

120

217

1500

91.0

660

T2W3-N – 150

 315M

187.5

150

271

1500

92

1040

T2W3-N – 200

250

200

361

1500

92.5

1180

T2W3-N – 250

312.5

250

451

1500

93

1370

T2W3-N – 300

315L

375

300

540

1500

93.5

1470

T2W3-N – 320

400

320

577

1500

93.5

1470

T2W3-N – 350

 355M

437.5

350

631

1500

93.5

1500

T2W3-N – 400

500

400

721.5

1500

94.5

1650

T2W3-N – 450

562.5

450

811

1500

93.5

1700

T2W3-N – 500

355L

625

500

902

1500

94

1900

T2W3-N – 630

400M

787.5

630

1136

1500

94.4

2320

T2W3-N – 700

875

700

1263

1500

94

2480

T2W3-N – 800

400L

1000

800

1443

1500

95

2960

T2W3-N – 900

1125

900

1624

1500

95

3050

 Download Complete Technical Data : t2w3-n.pdf

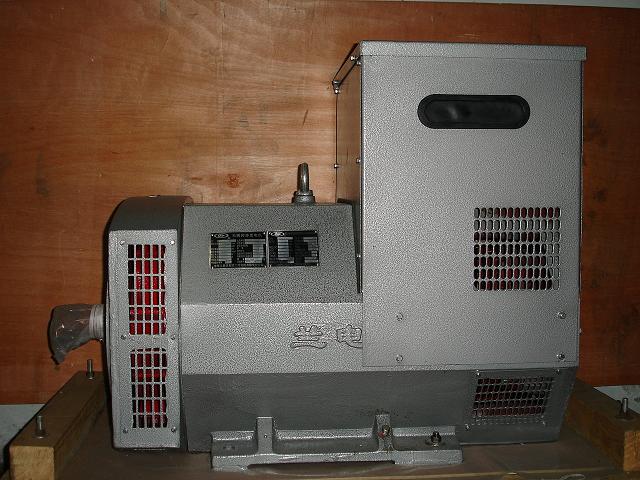

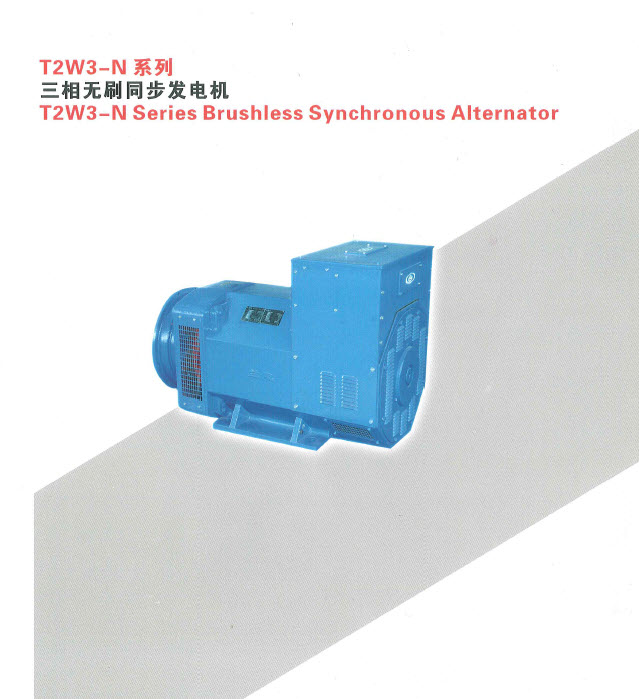

 Click here for product picture
